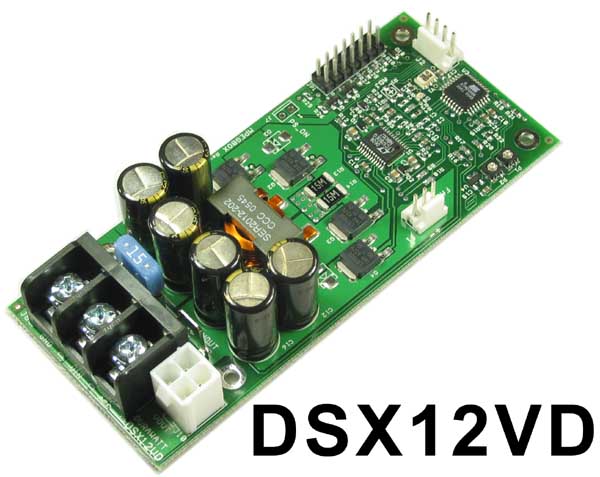

DSX12VD - Intelligent 140 Watt
12V-12V
Regulated DC-DC Power Supply for
Automotive Use

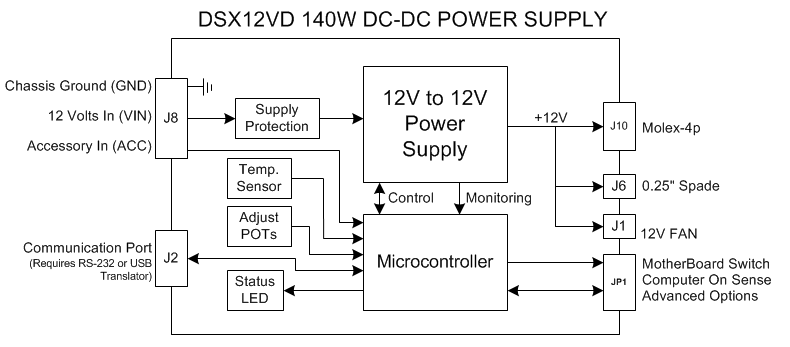

DSX12VD Block Diagram:
DSX12VD Overview:
|
Specifications: |
|
Input Voltage (Operating) |
6-24 Volts Non-Regulated |
|
Input Voltage (Full Load) |
8-16 Volts Non-Regulated |
|
Input Current |
15 Amps Max |
|
Output Power |
140 Watts Max |
|
No Load Operating Current |
< 70mA |
|
Sleep Current (All Rails Off) |
< 4mA |
|
Efficiency |
> 95% |
|
Supply Output |
Max Output Current |
|
12.0 Volts +/- 2% |
12 Amps Nominal, 15 Amps Peak |
